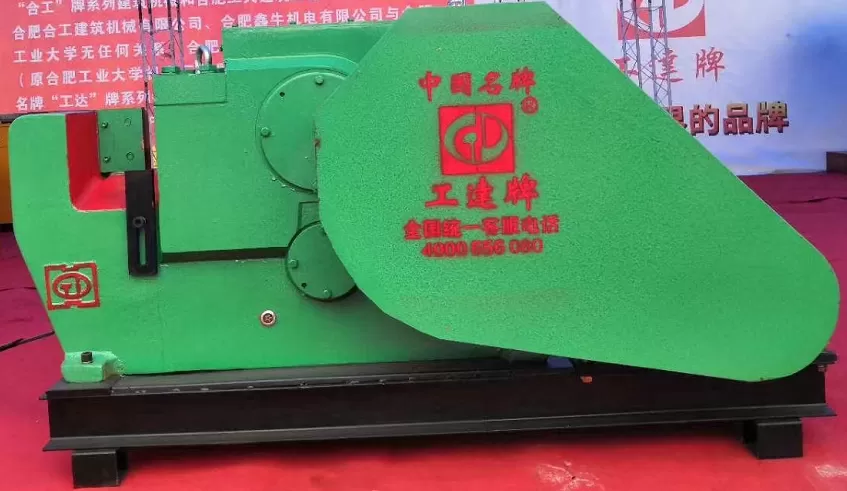

Rebar Cutting Machine
Powerful rebar cutting machine for bars up to 70 mm (A3 round steel) with 160-ton shear force.
Also known as
This machine is often called by these names or searched with these phrases.
Key features at a glance
Technical Specifications — GQ70A
| Bar diameter cut | A3 round bar / 70mm |
|---|---|
| Rebar grade II (deformed) | 55mm |
| Rebar grade III (deformed) | 50mm |
| Rebar grade IV (deformed) | 45mm |
| Material section sheared: < 3600 mm² | |
| Moving blade strokes | 26 strokes/min |
| Moving blade stroke | 70mm |
| Max shearing force | < 160 tons |
| Motor | Model / Y2-160M-4 |
| Power | 11KW |
| Rotating speed | 1450r.p.m |
| Voltage / frequency | 380V、50HZ |
| Dimensions | Length / 1950mm |
| Width | 1250mm |
| Height | 770mm |
Compare with related models
| Model | GDQX-500 | YGT4-15A(BP)+ZD-6M-25 | YGT4-15A(BP) | GQ70ABest seller | GQ50A | GD-350ZD |
|---|---|---|---|---|---|---|
| Bar range | 500-12000 | — | Round bar / 4-15mm | A3 round bar / 70mm | A3 round bar / 6-50mm | W 400 mm × H 350 mm |
| Power | 3600 | 7.5KW / Power (kW) / 20.5 | Power: / 15KW+5.5KW | < 160 tons | Model / Y132S-4 | 4KW |
| Output | 6-10 | 5-8s / Straightening speed (m/min) / 0-80 | 0-80m/min | 26 strokes/min | 26 strokes/min | 5-90m/min |
| Power supply | 380V | — | 380V、50HZ | 380V、50HZ | 380V、50HZ | — |
Where this machine works
High-rise construction
CNC bending and shearing lines for beams, columns and slab reinforcement.
Precast & prefab plants
Five-head stirrup and forming machines for mass production of cage components.
Bridges & tunnels
Arc benders for tunnel lining, bridge reinforcement and large-radius bends.
Rebar fabricators
Straightening, cutting and thread rolling for custom fabrication shops.
Quality, export packing & after-sales
Run-test
Every machine is run-tested under load and checked against its specification sheet before packing.
Export crating
Anti-rust treatment, film wrapping and reinforced wooden crating protect the machine for sea freight.
Shipping methods
Standard container — small and medium machines (cutters, stirrup machines, welders).
After-sales support
Documentation, remote guidance via video or WhatsApp, and spare parts supply after delivery.
Buying questions
Can you cut and straighten rebar in one machine?
Yes. Our VFD straightening & cutting machines (e.g. YGT4-15A(BP)) straighten Ø4-15 mm round and ribbed bars and cut them to 500-8000 mm with ±5 mm accuracy. For a full line, combine it with a five-head stirrup machine into a straightening-cutting-stirrup production line.
What is the capacity of a CNC five-head stirrup machine?
A five-head machine forms multiple stirrups in one cycle - e.g. ZD-6M-25 processes Ø8x10 bars, Ø10x7, Ø12x5 per stroke at 5-8 seconds per cycle, with ±2 mm length accuracy and ±1° angle accuracy.
